A Cabin With Flexible Floor Plans

Picture of The Cabin

Specifications

Square Footage

Total Above-ground living area 636
  Main Level 436-649
  Upper Level 200
Lower level living area
Footprint
The dimensions shown are for the house only (indicating the smallest area needed to build). They do not include the garage, porches, or decks, unless they are an integral part of the design.
 20 W x 32 D

Rooms

Above-ground bedrooms 2
Above-ground bathrooms 1
Master suite Main
Lower-level bedrooms 0
Lower-level bathrooms 0

Attributes

Stories 2
Parking
Number of stalls
House height
Traditionally, the overall height of a house is determined by measuring from the top of the finished floor on the main level, to the highest peak of the roof.
 19
Ceiling heights
Raising or lowering the height of the ceilings on one or more floors of a house is often a simple change that can be made by your builder. However, if you want to raise the ceiling of the main floor of a two-story home, there has to be room to add steps to the existing staircase.
  Main level 7.25
Vaulted ceilings
We consider a room to be vaulted if the ceiling - whether flat, angled, or curved - is above 10 feet at its highest point. If you prefer that one or more rooms not be vaulted in your new home, this is a very simple change that your builder can make for you.

KEY TO SYMBOLS:

LR = Living Room/Great Room
DR = Dining Room
FAM = Family Room
FOY = Foyer
STU = Study/Library/Den
KIT = Kitchen
SUN = Sunroom
MBR = Master Bedroom
MB = Master Bath
LOF = Loft
OFF = Office/Guest Room
REC = Recreation/Game Room
ALL = Entire Level
 LR, DR
Printer Friendly Version

Upper Level Floor Plans For The Cabin

Upper Level Floor Plans For The Cabin
Picture 1 of The Cabin
Picture 2 of The Cabin
Picture 3 of The Cabin
Picture 4 of The Cabin
Picture 5 of The Cabin
Picture 6 of The Cabin
Picture 7 of The Cabin
Picture 8 of The Cabin
Picture 9 of The Cabin
Picture 10 of The Cabin
Picture 11 of The Cabin
Picture 12 of The Cabin
Picture 13 of The Cabin
Picture 14 of The Cabin
Picture 15 of The Cabin
Picture 16 of The Cabin
Picture 17 of The Cabin
Picture 18 of The Cabin
Picture 19 of The Cabin
Picture 20 of The Cabin
Picture 21 of The Cabin

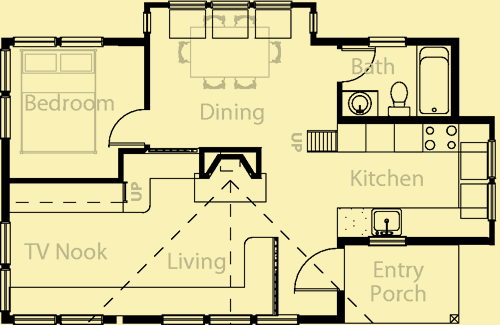

The plans for this charming small cabin contain drawings of 5 different versions, ranging in size from just 636 sf up to 848 sf. All 5 versions have small loft spaces that are reached via ladders from the main level, and versions 4 and 5 also have a bedroom on the first floor. The living and dining areas have a ceiling that vaults to the roofline, giving the house a larger and more spacious feel. And a centrally located fireplace or wood–burning stove helps heat the house on colder days and nights.

Version 1 is the smallest, at just 636 sf of conditioned space. Windows on all four outer walls provide natural light and views, and an 8’–wide screened porch at the rear of the house allows for outdoor dining and relaxation in warmer months.

Two 2’6″ bump–outs in Version 2 expand both the dining area and the kitchen, bringing the total conditioned space to 688 sf. These extensions can be added to Version 3 and 4 as well, and installing skylights over both spaces would add another dimension of interest. Version 3 goes back to the outline of Version 1, but the screened porch has been cut in half so as to expand the living room space. The extra area has great light and views thanks to four windows that wrap around the corner. An inglenook as been added next to the fireplace, adding to the seating in the living room, but the “ship’s” ladder to the loft has to be replaced with a vertical ladder.

In Version 4, a bedroom has been added where the screened porch was located in Version 3, and the porch is now off the living room. And Version 5 combines all the elements of the previous versions, but without the screened porch. Yet the conditioned space only rises to 849 sf.

Please Note
Due to licensing agreements, this home may not be built in Hancock County, Maine.

Printer Friendly Version

Front Elevation For The Cabin

Front Elevation For The Cabin

Rear Elevation For The Cabin

Rear Elevation For The Cabin

Side 1 Elevation For The Cabin

Side 1 Elevation For The Cabin

Side 2 Elevation For The Cabin

Side 2 Elevation For The Cabin

Front Elevation For The Cabin

Front Elevation For The Cabin

Rear Elevation For The Cabin

Rear Elevation For The Cabin

Side 3 Elevation For The Cabin

Side 3 Elevation For The Cabin

Side 4 Elevation For The Cabin

Side 4 Elevation For The Cabin

Brief Description

This rustic cabin can be as small as 635 square feet or as large as 850. There are actually five different versions included in the plans. All five have sleeping lofts on either side that are accessed by ship's ladders, and all are vaulted in the living areas on the main level. Each of the five versions has a unique floor plan, so if you're looking to build a small cabin, hopefully one will fit your needs.

Select One Plan Set Option



5 Set Package:

Printed on Bond paper; may be modified, but not duplicated

Mylar:

Printed on Mylar; may be modified right on the plans, which can then be duplicated locally. Includes extra copy printed on Bond paper

PDF:

Highly Recommended
By far the most popular option! Instant, cost-free delivery via email; can be emailed to builder(s) and others; comes with license to modify & duplicate

CAD:

For use by design professionals to make substantial changes; may be printed locally after modifications are made; cost-free delivery via email
Clear selection

Select Optional Add-ons



Sometimes the house you want will only work on your property if it is built in the reverse of the original design. The plans for this particular design can be reversed by the architect, with right-reading (not mirror-reverse) words and measurements. The fee will only be added to your original order. If you wish to order more reverse copies of the plans later, please call us toll-free at 1-888-388-5735.

 $250


If you need more than 5 sets, you can add them to your initial order, or order them (by phone) at a later date.

This option is only available to folks ordering the 5-Set Package.

 $50 each


Often views or site characteristics make it either advantageous or necessary to build a house in the reverse of the way the plans were originally drawn. When reversed, the front of the house continues to face in the same direction, but rooms that were on the right side of the house as you face it will now be on the left, and vice versa. The lettering and numbers will appear as they would if you held the plans up to a mirror, but this will not present a problem for your builders, as they are quite familiar with this process.

We recommend that your order include both right-reading and mirror-reverse copies, since permit officials and lenders will need to see a right-reading version. There is a one-time cost of $50 to reverse the plans, whether you buy them all in your initial purchase, or a follow up order. The number you will need of each version is something your builder should advise you on.

Please note: If a right-reading reverse version of the plans is offered, this is definitely the version you should purchase, whether you're interested in bonds, vellums, or electronic files (when available).

 $50
SKU: KA-013
