Wrap Around Decks & Porch

Picture of Wrap Around Decks & Porch

Specifications

Square Footage

Total Above-ground living area 2468
  Main Level 1818
  Upper Level 650
Lower level living area  1039
Footprint
The dimensions shown are for the house only (indicating the smallest area needed to build). They do not include the garage, porches, or decks, unless they are an integral part of the design.
44 W x 44 D

Rooms

Above-ground bedrooms 3 - 4
Above-ground bathrooms 3
Master suite Main
Lower-level bedrooms 0
Lower-level bathrooms 0

Attributes

Stories 2
Parking garage
Number of stalls 3
House height
Traditionally, the overall height of a house is determined by measuring from the top of the finished floor on the main level, to the highest peak of the roof.
30.5
Ceiling heights
Raising or lowering the height of the ceilings on one or more floors of a house is often a simple change that can be made by your builder. However, if you want to raise the ceiling of the main floor of a two-story home, there has to be room to add steps to the existing staircase.
  Main level 9
  Upper level 8
Vaulted ceilings
We consider a room to be vaulted if the ceiling - whether flat, angled, or curved - is above 10 feet at its highest point. If you prefer that one or more rooms not be vaulted in your new home, this is a very simple change that your builder can make for you.

KEY TO SYMBOLS:

LR = Living Room/Great Room
DR = Dining Room
FAM = Family Room
FOY = Foyer
STU = Study/Library/Den
KIT = Kitchen
SUN = Sunroom
MBR = Master Bedroom
MB = Master Bath
LOF = Loft
OFF = Office/Guest Room
REC = Recreation/Game Room
ALL = Entire Level
LR, DR, SUN
Printer Friendly Version

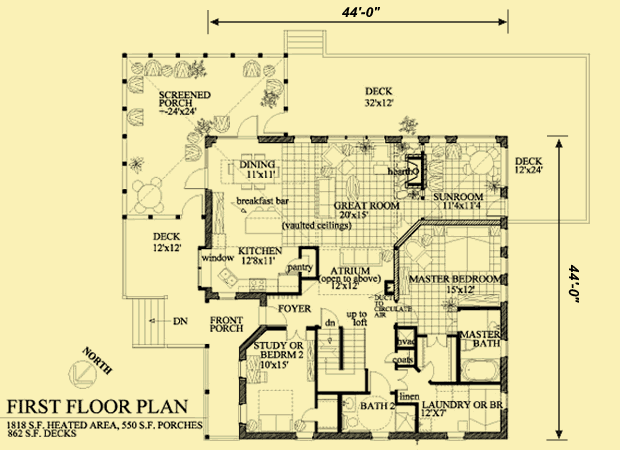

Main Level Floor Plans For Wrap Around Decks & Porch

Main Level Floor Plans For Wrap Around Decks & Porch

Upper Level Floor Plans For Wrap Around Decks & Porch

Upper Level Floor Plans For Wrap Around Decks & Porch

Lower Level Floor Plans For Wrap Around Decks & Porch

Lower Level Floor Plans For Wrap Around Decks & Porch
Picture of Wrap Around Decks & Porch

First Floor
Porches and decks nearly surround this house, making it a wonderful home for people who love to spend time outdoors. An atrium in the very center of the house provides both natural light and drama. The foyer off the front porch leads directly to the atrium area, which transitions into the living areas of the house. Upon entering this area, you and your guests will experience both the drama of the vaulted ceilings – rising to 20' at the atrium's edge – and the beauty of the outdoors through all the windows on this side of the house.

The kitchen is separated from the dining area by an island with a breakfast bar (also vaulted), and the great room is (visually) separated from the sunroom by the hearth. The dining room provides access to a very large screened porch, and the sunroom provides access to an even larger deck.

The master bedroom suite is conveniently located on this floor, and the laundry room can be accessed directly from the large walk–in closet. There's a second bedroom on this level that could be used as a home office or a study, and a full bath.

Second Floor
The stairs lead up to a small loft area that looks down on the atrium space and the great room. Two additional bedrooms are located on this floor that share a full bath. The homeowners knew that family members would be visiting on a regular basis, so they had the architect create a couple of guest nooks for them. Guest nook 1 could easily be converted into a study area or walk–in closet for bedroom 4. The abundance of walk–in, semi–conditioned eave storage areas will be appreciated by everyone.

Basement
A partial basement is designed with storage, mechanical, and laundry in mind, to free up more of the first floor.

Garage
The detached garage has room for two vehicles and a large workshop, or for three vehicles if you don't need shop space. There's also plenty of room for storage in this 24' deep by 36' wide garage. Pull–down stairs lead to attic storage.

Construction Info
The plans for this house call for ICF (insulated concrete form) exterior walls for the main level, and 2×6 stud walls for the upper level.

Modification Ideas
Add another bedroom upstairs over the great room or the dining area. Build with SIP walls, or 6" studs caulked and insulated. Make the kitchen larger by expanding into the front porch and foyer, and then turn bedroom 2 into a combination foyer/away room.

Printer Friendly Version

Front Elevation For Wrap Around Decks & Porch

Front Elevation For Wrap Around Decks & Porch

Rear Elevation For Wrap Around Decks & Porch

Rear Elevation For Wrap Around Decks & Porch

Side 1 Elevation For Wrap Around Decks & Porch

Side 1 Elevation For Wrap Around Decks & Porch

Side 2 Elevation For Wrap Around Decks & Porch

Side 2 Elevation For Wrap Around Decks & Porch

Brief Description

This charming house was clearly designed for a family that likes to spend a lot of time outdoors. A clerestory atrium projects from the center, allowing light to flow into the middle of the house, and hot air to escape in the summer. Both the decks and the screened porch that wrap around the house are 12'–deep, so there's plenty of room for furniture and entertaining guests. It can be a passive solar house if it faces northeast.
