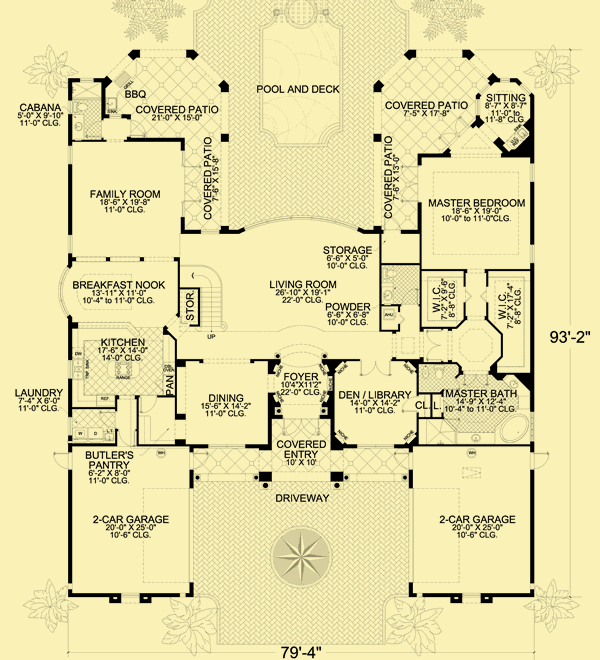

Main Level Floor Plans For Regal Splendor

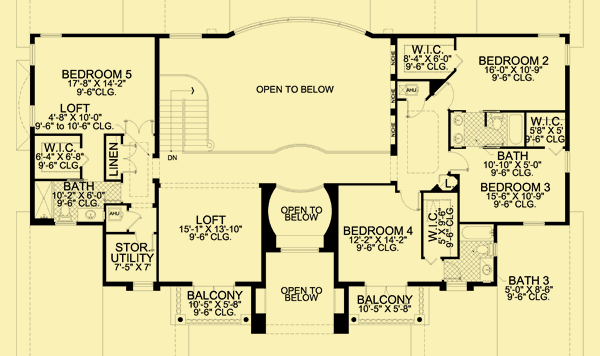

Upper Level Floor Plans For Regal Splendor
Regal Splendor Mediterranean Luxury Home
Specifications
Square Footage
| Total Above-ground living area | 5754 |
| Main Level | 3715 |
| Upper Level | 2039 |
| Lower level living area | |
| Footprint The dimensions shown are for the house only (indicating the smallest area needed to build). They do not include the garage, porches, or decks, unless they are an integral part of the design. |
81 W x 89.333 D |
Rooms
| Above-ground bedrooms | 5 |
| Above-ground bathrooms | 5.5 |
| Master suite | Main |
| Lower-level bedrooms | 0 |
| Lower-level bathrooms | 0 |
Attributes
| Stories | 2 |
| Parking | garage |
| Number of stalls | 4 |
| House height
Traditionally, the overall height of a house is determined by measuring from the top of the finished floor on the main level, to the highest peak of the roof.
|
32 |
| Ceiling heights Raising or lowering the height of the ceilings on one or more floors of a house is often a simple change that can be made by your builder. However, if you want to raise the ceiling of the main floor of a two-story home, there has to be room to add steps to the existing staircase. |
|
| Main level | 11 |
| Upper level | 9.5 |
| Vaulted ceilings
We consider a room to be vaulted if the ceiling - whether flat, angled, or curved - is above 10 feet at its highest point. If you prefer that one or more rooms not be vaulted in your new home, this is a very simple change that your builder can make for you.
KEY TO SYMBOLS: LR = Living Room/Great Room DR = Dining Room FAM = Family Room FOY = Foyer STU = Study/Library/Den KIT = Kitchen SUN = Sunroom MBR = Master Bedroom MB = Master Bath LOF = Loft OFF = Office/Guest Room REC = Recreation/Game Room ALL = Entire Level |
ALL |
Printer Friendly Version
After coming off the covered entry, you enter a two–story high foyer space with a view to the balcony above. The curved bay windows in the formal living room straight ahead provide immediate two–story views to the rear. To the left of the foyer are a formal dining room and a stairwell to the upper floor. The dining room conveniently accesses the kitchen through a butler's pantry. The kitchen has a center island with a stove, and is open to the breakfast nook, which has a smaller curved bay window. The breakfast nook has a coffered ceiling, and a half–height wall with columns, which separates the nook from the family room. The family room has an opening that accesses the living room, and at the rear there is a vestibule to a full cabana bath. A pair of doors from the family room leads to the covered patio, which features arched openings and is perfect for entertaining with a barbeque area and direct access to the cabana bath. On the other side of the kitchen are a laundry room and a two–car garage.
If you turn right at the entry foyer, you pass a den/library and a powder room before reaching the master suite. Upon entering the master bedroom, you find yourself in an octagon shaped vestibule. If you turn left, you pass two walk–in closets as you walk towards the rear of the bedroom, where there is an octagon shaped sitting area with a wet bar. Two pairs of doors open onto the covered patio, which is symmetrical to the family room covered patio, with columns and arched openings. The large master bath has a private toilet, a linen closet, two separate sinks, and both a shower and a tub.
The upstairs landing opens into a large loft space, which has a private balcony that looks out to the front. The upper balcony looks down to the living room and foyer space. If you turn right at the stairwell, you'll find a linen closet, a storage/utility room, and a bedroom suite with a walk–in closet and full bath. On the other side of the upper balcony, there are three more bedrooms, each with walk–in closets, and two full baths. Bedroom 4 has its own private full bath, and a balcony that looks out to the front.
Please Note
The plans for this home call for reinforced concrete block exterior walls. If you plan to construct this house with any other exterior wall system, we highly recommend that you purchase the plans in electronic format.
Printer Friendly Version
Front Elevation For Regal Splendor
Rear Elevation For Regal Splendor
Side 1 Elevation For Regal Splendor
Side 2 Elevation For Regal Splendor
Brief Description
This classic Mediterranean home has a central driveway with a two–car garage on either side of it. The exterior is graced with decorative stucco elements, balustrades, decorative round columns, and arched openings. The living room features curved bay windows that look out to the backyard, and a two–story ceiling that reaches 22'.
