Sunny Cottage With Master In The Rear

Picture of Sunny Master in the Rear

Specifications

Square Footage

Total Above-ground living area 1223
  Main Level 1223
Lower level living area  1296
Footprint
The dimensions shown are for the house only (indicating the smallest area needed to build). They do not include the garage, porches, or decks, unless they are an integral part of the design.
42 W x 36 D

Rooms

Above-ground bedrooms 1
Above-ground bathrooms 1.5
Master suite Main
Lower-level bedrooms 2
Lower-level bathrooms 1

Attributes

Stories 1
Parking garage
Number of stalls 2
House height
Traditionally, the overall height of a house is determined by measuring from the top of the finished floor on the main level, to the highest peak of the roof.
23' 0"
Ceiling heights
Raising or lowering the height of the ceilings on one or more floors of a house is often a simple change that can be made by your builder. However, if you want to raise the ceiling of the main floor of a two-story home, there has to be room to add steps to the existing staircase.
  Main level 8
Vaulted ceilings
We consider a room to be vaulted if the ceiling - whether flat, angled, or curved - is above 10 feet at its highest point. If you prefer that one or more rooms not be vaulted in your new home, this is a very simple change that your builder can make for you.

KEY TO SYMBOLS:

LR = Living Room/Great Room
DR = Dining Room
FAM = Family Room
FOY = Foyer
STU = Study/Library/Den
KIT = Kitchen
SUN = Sunroom
MBR = Master Bedroom
MB = Master Bath
LOF = Loft
OFF = Office/Guest Room
REC = Recreation/Game Room
ALL = Entire Level
LR, DR, KIT, MBR, MB
Printer Friendly Version

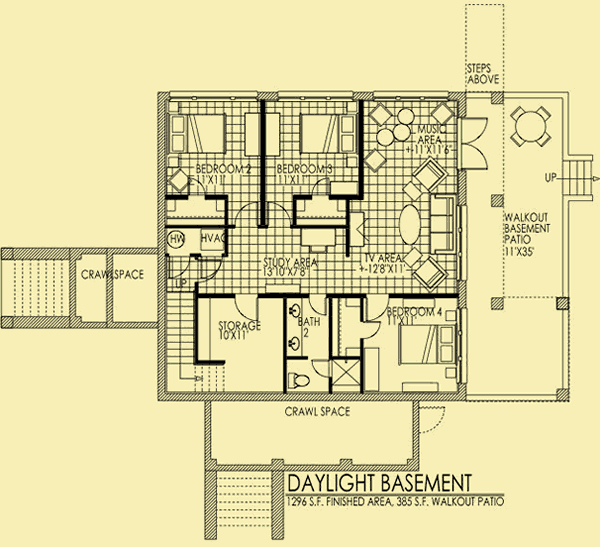

Lower Level Floor Plans For Sunny Master in the Rear

Lower Level Floor Plans For Sunny Master in the Rear

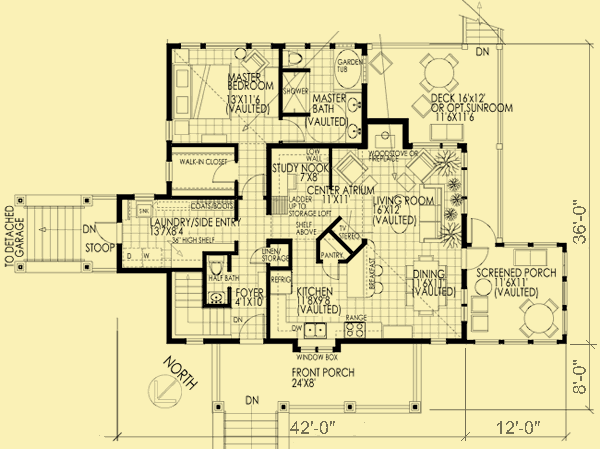

Main Level Floor Plans For Sunny Master in the Rear

Main Level Floor Plans For Sunny Master in the Rear

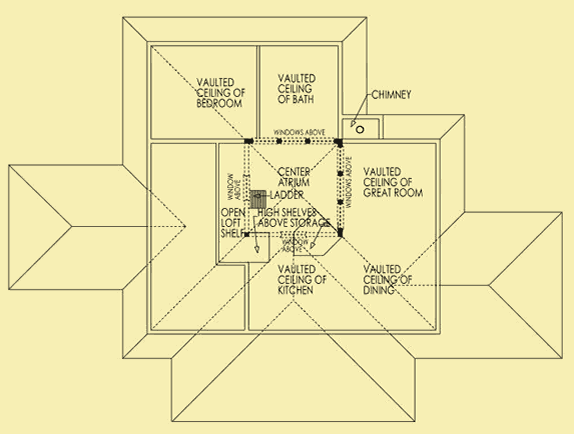

Upper Level Floor Plans For Sunny Master in the Rear

Upper Level Floor Plans For Sunny Master in the Rear
Picture 1 of Sunny Master in the Rear
Picture 2 of Sunny Master in the Rear
Picture 3 of Sunny Master in the Rear
Picture 4 of Sunny Master in the Rear
Picture 5 of Sunny Master in the Rear
Picture 6 of Sunny Master in the Rear

The covered front porch is 24'–wide and 7'–deep, so there's plenty of room for outdoor furniture. As you enter the foyer there are stairs to the (optional) basement immediately to your left, and just beyond it there's a powder room with a linen closet across from it. Just beyond the closet there is a laundry room/mudroom with a door on the far end to the side yard and the detached garage (which could of course be attached via a breezeway). From this same spot in the foyer there is a door leading to the master suite, and an opening to the main living areas.

As you leave the foyer, which has an 8' ceiling, you enter a square atrium area where the ceiling jumps to the full height of the clerestory windows above the atrium. There are 8 windows at the top – one each on the front and one side, and three each on the rear and the other side. If one of the windows is electronically operable, or replaced by a small fan, a natural chimney effect will draw hot air out of the house. There's a built–in study nook in one corner of the sunny atrium space, with a 6'–high wall around it, and a ladder next to it to access storage and shelves for plants.

The ceilings in this house are unique and quite dramatic, but a bit difficult to explain. The highest point is the very center of the clerestory. If you were to draw two lines that begin and end at two opposing corners of the house (essentially an "X"), each of the four "pie slices" (with the exception of the foyer, half bath, and laundry), each of the four ceiling "sections" descend from nearly 18' in the center to 8' at the edges. Which produces spaces that are indeed unique and dramatic!

In one corner of the kitchen there's a pantry with a built–in entertainment behind it that faces the living room. A peninsula counter next to it has a raised outer bar for casual eating or serving. The sinks are positioned beneath a pair of windows that bump out to create space for a window box.

The dining area is conveniently located next to the kitchen. One window provides a view to the front, while two other windows and a glass door look and open out to the screened porch. A door in the porch opens to a side deck that wraps around to a wider section at the rear. The corner of the living room is wrapped with windows that look out to and through the side and rear deck. All of the windows in the dining and living rooms are 6'–tall. There is a nook in the living room that was designed for either a fireplace or a wood stove.

The master bedroom has a wall of windows facing the rear, and another in one corner for additional light and cross ventilation. There's a walk–in closet off the short hall to the bedroom, and the bath has a garden tub in one corner beneath glass block openings, a shower big enough for two, and two vanities.

The basement area is designed to have three additional bedrooms that share a single bathroom, a large study space, and an even larger recreation space. A storage space and the mechanicals are also located here, but the mechanical systems can be moved to a small crawlspace if you don't plan to build the lower level.

Garage
The detached garage can be either a two–car garage with a workshop space, or made to accommodate a third car or a tractor by adding a third garage door. It could even be semi–attached via the laundry room, if the layout of the land allowed.

Printer Friendly Version

Front Elevation For Sunny Master in the Rear

Front Elevation For Sunny Master in the Rear

Rear Elevation For Sunny Master in the Rear

Rear Elevation For Sunny Master in the Rear

Side 1 Elevation For Sunny Master in the Rear

Side 1 Elevation For Sunny Master in the Rear

Side 2 Elevation For Sunny Master in the Rear

Side 2 Elevation For Sunny Master in the Rear

    Brief Description

    This handsome home can be built with or without a basement level. Without a basement, it's a one story, one (master) bedroom, 1,223 sf home. With the full basement, it's a 4 bedroom, 2.5 bathroom home, with an additional 1,296 sf on the lower level. It features a large front porch, a screened porch with a vaulted ceiling and a 180–degree plus view, and a side deck that wraps around to the back where the deck space can be replaced by a sunroom. And an atrium allows sunlight to fill the middle of the house. It can be a passive solar house if it faces southeast.

    Select One Plan Set Option



    5 Set Package:

    Printed on Bond paper; may be modified, but not duplicated

    Mylar:

    Printed on Mylar; may be modified right on the plans, which can then be duplicated locally. Includes extra copy printed on Bond paper

    PDF:

    Highly Recommended
    By far the most popular option! Instant, cost-free delivery via email; can be emailed to builder(s) and others; comes with license to modify & duplicate

    CAD:

    For use by design professionals to make substantial changes; may be printed locally after modifications are made; cost-free delivery via email
    Clear selection

    Select Optional Add-ons



    Sometimes the house you want will only work on your property if it is built in the reverse of the original design. The plans for this particular design can be reversed by the architect, with right-reading (not mirror-reverse) words and measurements. The fee will only be added to your original order. If you wish to order more reverse copies of the plans later, please call us toll-free at 1-888-388-5735.

    $250


    If you need more than 5 sets, you can add them to your initial order, or order them (by phone) at a later date.

    This option is only available to folks ordering the 5-Set Package.

    $50 each


    Often views or site characteristics make it either advantageous or necessary to build a house in the reverse of the way the plans were originally drawn. When reversed, the front of the house continues to face in the same direction, but rooms that were on the right side of the house as you face it will now be on the left, and vice versa. The lettering and numbers will appear as they would if you held the plans up to a mirror, but this will not present a problem for your builders, as they are quite familiar with this process.

    We recommend that your order include both right-reading and mirror-reverse copies, since permit officials and lenders will need to see a right-reading version. There is a one-time cost of $50 to reverse the plans, whether you buy them all in your initial purchase, or a follow up order. The number you will need of each version is something your builder should advise you on.

    Please note: If a right-reading reverse version of the plans is offered, this is definitely the version you should purchase, whether you're interested in bonds, vellums, or electronic files (when available).

    $50
    SKU: DC-894
