Hipped Roof One Story With Atrium

Picture of Hipped Roof Atrium

Specifications

Square Footage

Total Above-ground living area 2937
  Main Level 2440
  Loft Level 497
Lower level living area  1666
Footprint
The dimensions shown are for the house only (indicating the smallest area needed to build). They do not include the garage, porches, or decks, unless they are an integral part of the design.
60 W x 52 D

Rooms

Above-ground bedrooms 3
Above-ground bathrooms 3.5
Master suite Main
Lower-level bedrooms 0
Lower-level bathrooms 0

Attributes

Stories 1
Parking garage
Number of stalls 2
House height
Traditionally, the overall height of a house is determined by measuring from the top of the finished floor on the main level, to the highest peak of the roof.
23' 0"
Ceiling heights
Raising or lowering the height of the ceilings on one or more floors of a house is often a simple change that can be made by your builder. However, if you want to raise the ceiling of the main floor of a two-story home, there has to be room to add steps to the existing staircase.
  Main level 8
Vaulted ceilings
We consider a room to be vaulted if the ceiling - whether flat, angled, or curved - is above 10 feet at its highest point. If you prefer that one or more rooms not be vaulted in your new home, this is a very simple change that your builder can make for you.

KEY TO SYMBOLS:

LR = Living Room/Great Room
DR = Dining Room
FAM = Family Room
FOY = Foyer
STU = Study/Library/Den
KIT = Kitchen
SUN = Sunroom
MBR = Master Bedroom
MB = Master Bath
LOF = Loft
OFF = Office/Guest Room
REC = Recreation/Game Room
ALL = Entire Level
LR, DR, STU, MBR
Printer Friendly Version

Main Level Floor Plans For Hipped Roof Atrium

Main Level Floor Plans For Hipped Roof Atrium

Upper Level Floor Plans For Hipped Roof Atrium

Upper Level Floor Plans For Hipped Roof Atrium

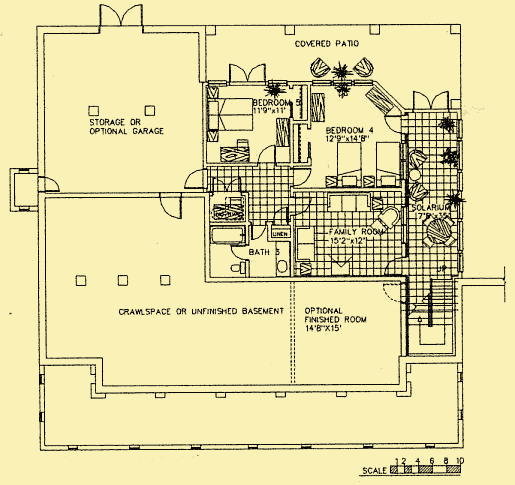

Lower Level Floor Plans For Hipped Roof Atrium

Lower Level Floor Plans For Hipped Roof Atrium
Picture 1 of Hipped Roof Atrium
Picture 2 of Hipped Roof Atrium

First Floor
The front porch runs the length of the house, widening to a 12' depth on either end. The foyer opens to a parlor/study that can function as a formal dining room, and to an optional spiral staircase that would lead to the loft, should you choose to build it. Double doors bring you to the kitchen and the dining area, which are separated by a breakfast bar. The kitchen is located in the very center of the home, and the atrium above it brings in lots of natural light. A large walk–in pantry is nearby, and next to it is a half bath for guests. The great room has a fireplace in one corner, and both it and the dining area have vaulted ceilings that rise to 16'.

Along with the long front porch, there's also a covered porch and a screened porch in the rear of the house, and a 2–story solarium on the side, making this a great home for those who love to be outdoors and next to nature.

The elegant master bedroom has a vaulted ceiling, and it includes a fireplace as well as a very large walk–in closet and a dressing area. The master bath features both a tub and a large shower, separate sinks (one with a vanity), and a private toilet. Double doors in the bedroom lead to the covered porch and screened porch beyond it.

Two additional bedrooms (one of which could be a study or home office) are located at the front of the house, and they share a full bath. Bedroom 2 also has a large walk–in closet. The laundry room is located on this floor as well.

Second Floor Loft Option
The loft features a library area and a bath of its own, and it overlooks the main area of the house.

Daylight Basement
The basement has two additional bedrooms that share a full bath, a family room, and a solarium (which would be full of sunlight from above).

Garage
The plans include a two–car garage, with a large workshop at one end that is large enough for a third vehicle. It is designed to match the main house, and can either be detached, or attached to the left side of the house (as you face it). This would require the laundry room windows to be removed.

Modification Idea
For a simple home, eliminate the loft (but keep the atrium), and the basement. Without the basement, the sunroom would then be on the first floor.

Printer Friendly Version

Front Elevation For Hipped Roof Atrium

Front Elevation For Hipped Roof Atrium

Rear Elevation For Hipped Roof Atrium

Rear Elevation For Hipped Roof Atrium

Side 1 Elevation For Hipped Roof Atrium

Side 1 Elevation For Hipped Roof Atrium

Side 2 Elevation For Hipped Roof Atrium

Side 2 Elevation For Hipped Roof Atrium

    Brief Description

    Hipped Roof Atrium has a simple exterior form, but it is full of surprises inside, and has lots of outdoor spaces for those who like to be close to nature. Some of its unique features include a two–story solarium off the living and dining areas; a loft on an upper level accessed by a spiral staircase off the foyer; and a master suite with a fireplace in the bedroom, an oversized bath area, and a huge walk–in closet. The atrium in the center lets natural light into the middle of the house. It can be a passive solar house if it faces west.

    Select One Plan Set Option



    5 Set Package:

    Printed on Bond paper; may be modified, but not duplicated

    Mylar:

    Printed on Mylar; may be modified right on the plans, which can then be duplicated locally. Includes extra copy printed on Bond paper

    PDF:

    Highly Recommended
    By far the most popular option! Instant, cost-free delivery via email; can be emailed to builder(s) and others; comes with license to modify & duplicate

    CAD:

    For use by design professionals to make substantial changes; may be printed locally after modifications are made; cost-free delivery via email
    Clear selection

    Select Optional Add-ons



    Sometimes the house you want will only work on your property if it is built in the reverse of the original design. The plans for this particular design can be reversed by the architect, with right-reading (not mirror-reverse) words and measurements. The fee will only be added to your original order. If you wish to order more reverse copies of the plans later, please call us toll-free at 1-888-388-5735.

    $250


    If you need more than 5 sets, you can add them to your initial order, or order them (by phone) at a later date.

    This option is only available to folks ordering the 5-Set Package.

    $50 each


    Often views or site characteristics make it either advantageous or necessary to build a house in the reverse of the way the plans were originally drawn. When reversed, the front of the house continues to face in the same direction, but rooms that were on the right side of the house as you face it will now be on the left, and vice versa. The lettering and numbers will appear as they would if you held the plans up to a mirror, but this will not present a problem for your builders, as they are quite familiar with this process.

    We recommend that your order include both right-reading and mirror-reverse copies, since permit officials and lenders will need to see a right-reading version. There is a one-time cost of $50 to reverse the plans, whether you buy them all in your initial purchase, or a follow up order. The number you will need of each version is something your builder should advise you on.

    Please note: If a right-reading reverse version of the plans is offered, this is definitely the version you should purchase, whether you're interested in bonds, vellums, or electronic files (when available).

    $50
    SKU: DC-523
